Power Surge Protector

MARSA Power Surge Protectors, PSP1 series are designed specifically to protect single phase and three phase supply system from Malaysian Extreme Lightning Surges. Installed parallel to incoming power feeder. PSP1 series power surge protector offers up to 80kA surge current protection per phase Life to Neutral, Neutral to Earth & Life to Earth (Ful Mode) generated in electrical power line to earth.

Inquiry Form Download brochure

Features and Benefits

Full mode protection. with 7 MOV. All mode protection covers Life to Neutral, Neutral to Earth & Life to Earth
Monoblock type and each mode protected by single MOV with the same current rating.
Double protection unit suitable to Malaysia Extreme Lightning Surges.
With LED indicator.

Single Phase

PSP1-20240, PSP1-40240

Able to withstand 20-40kA surge current per phase (L-N), (L-E), (N-E).
Designed for single phase power line. Suitable for Main Switch Board, Sub Switch Board, Distribution Board and LED lighting feeder pillar with incoming cable <35 mm² (PSP1-20240) and incoming cable >35 mm²/<95 mm² (PSP1-40240).
Full mode protection.
Monoblock type.
LED Indicator.

Three Phase

PSP1-20415, PSP1-40415, PSP1-80415

Able to withstand 20-80kA surge current per phase (L-N), (L-E), (N-E).
Designed for single phase power line. Suitable for Main Switch Board, Sub Switch Board, Distribution Board and LED lighting feeder pillar with incoming cable <35 mm² (PSP1-20415), incoming cable <95 mm² (PSP1-40415) and incoming cable >95 mm² (PSP1-80415).
Full mode protection.
Monoblock type.
LED Indicator.

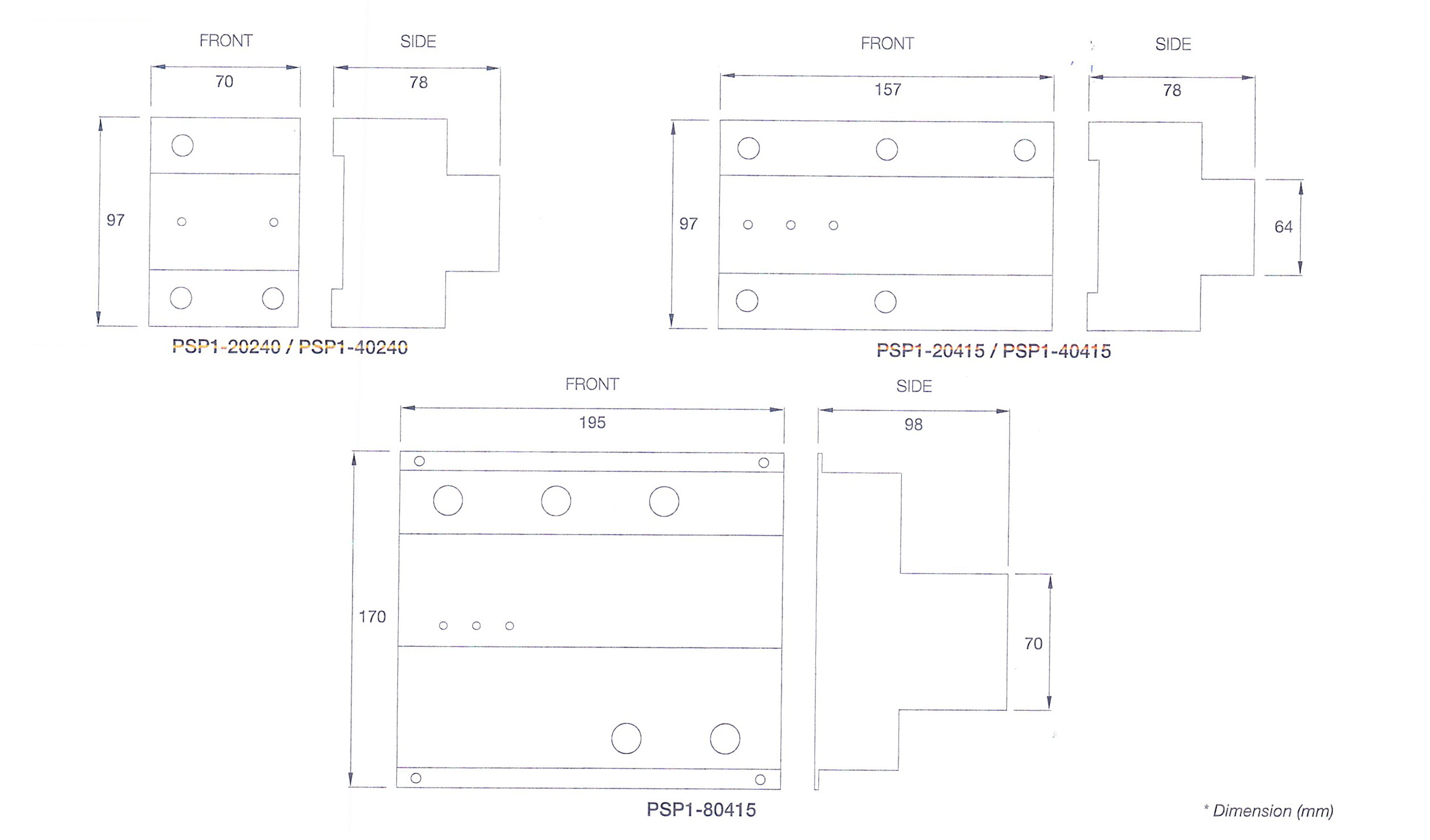

Dimension

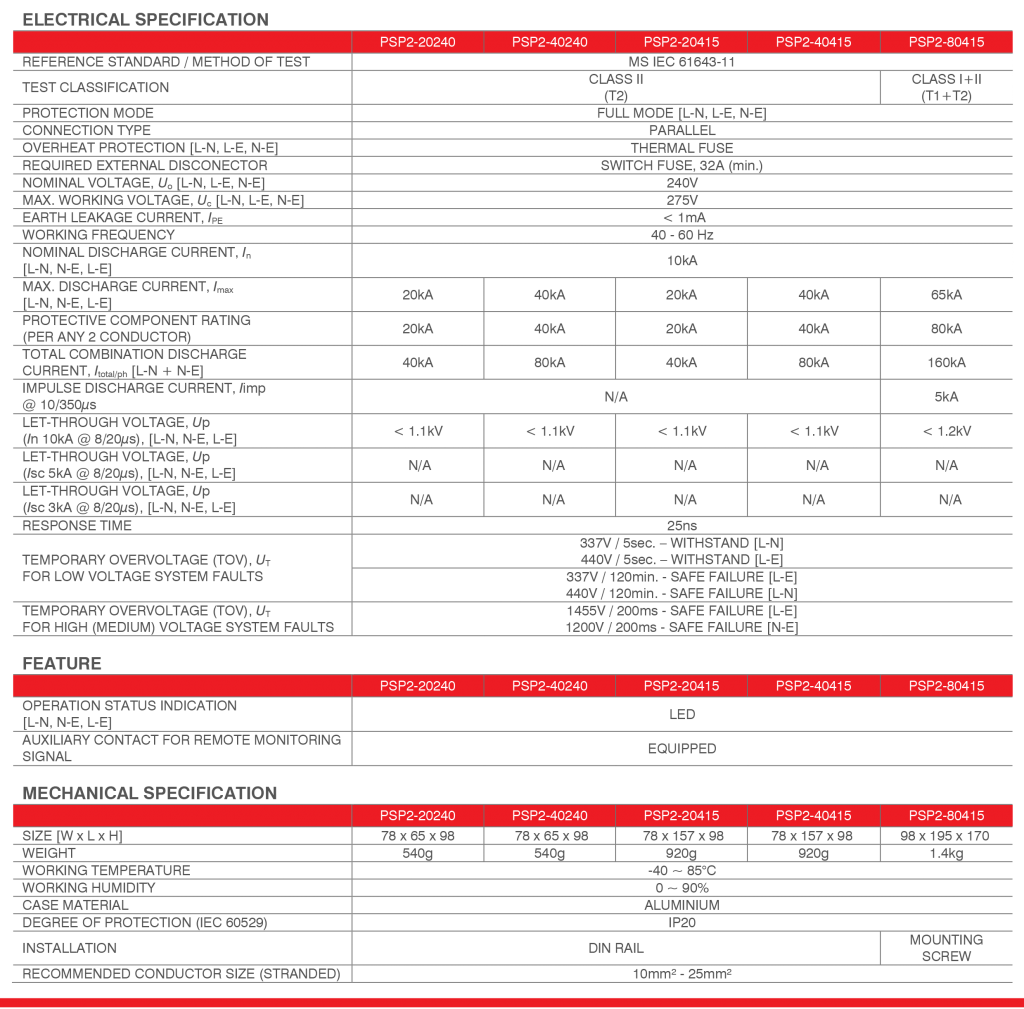

Electrical Specification

Important

The product is warranted only for manufacturing defects. The warranty period is two years and began on the date of purchased.
The warranty does not apply to for any misused, altered, neglected or damaged by accident or abnormal conditions of operation or handling.
Warranty is only valid if the products is purchased through an approved MARSA distributor only
